| Business Type | Manufacturer, Supplier |
| Liquid inlet | Titanium |
| Weight | 1000gms |
| Operating Frequency | 120 KHz |
| Click to view more | |
Product Details
Median Drop diameter
25 µmeter
Transducer material
Titanium
Transducer enclosure
SS316
Operating Temperature Range
15 to 70 degree centigrade
Maximum flow rate (Water)
3 ml/minute
Normal power Normal power consumption (Subject to flow (Subject to flow rate and solution viscosity)
20 watts
Normal power consumption (Subject to flow rate and solution viscosity)
2 to 7 watts
RF Input ( output from e nozzle drive system)
BNC connector
O ring (Isolate transducer from external environment)
Viton®

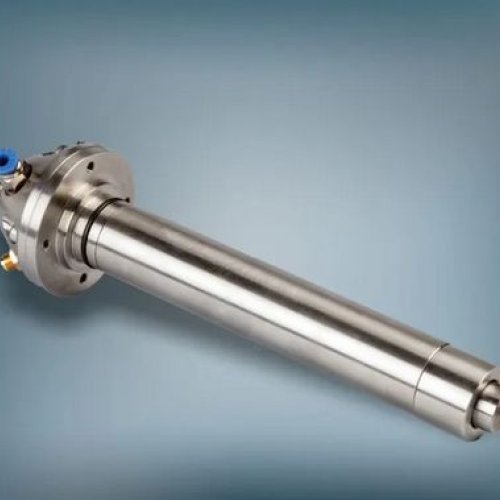

We offer an advanced Ultrasonic Spray Nozzle with a 120 KHz operating frequency, ideal for precise liquid atomization. Operating temperature range of 15 to 70 degrees Celsius ensures versatile usage. Constructed with SS316 transducer enclosure and titanium transducer material for durability. Features a median drop diameter of 25 µm and a maximum flow rate of 3 ml/minute for efficient performance. With a weight of 1000gms and a liquid inlet made of titanium, this nozzle is designed for reliability. Normal power consumption ranges from 2 to 7 watts, making it energy-efficient. Perfect for manufacturers and suppliers seeking high-quality spray solutions.
