| Business Type | Manufacturer, Exporter, Supplier |
| Condition | New |
| Usage/Application | Coating |
| Material | SS316 |
| Click to view more | |
Product Details
Country of Origin
240 V
Power
2500 Watts
US Nozzle
60/120/160KHz
USN Drive system
60/120/160KHz
CNC controlled Nozzle Movement X Y direction
100mmX100mm
Manual Nozzle Movement Z direction
100mm
Substarte heating Plate top
Ceramic
Maximum settable substarte temp
500DC
Spray Chamber
SS316, 20 Guage
Syringe Pump
10ml/min max
Air shaping attachment
Titanium
Substarte Hold on Ceramic top
SS316 metal frames
PLC and HMI
Toshiba Make
Stepper motor X 2
NEMA17

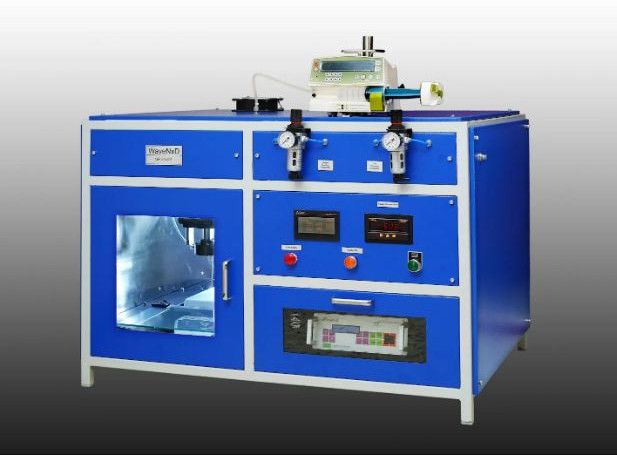

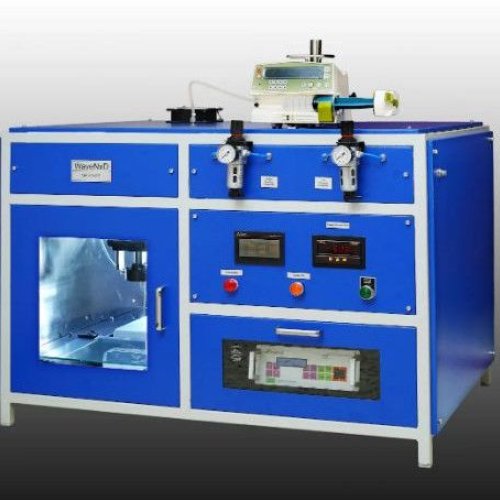

We offer a new Ultrasonic Spray Pyrolysis system made of SS316 material, originating from a 240V country. With a powerful 2500 Watts, this system is ideal for coating applications. It features US nozzles at 60/120/160KHz, USN Drive system at 60/120/160KHz, and CNC controlled nozzle movement in X Y direction of 100mmX100mm. Additionally, manual nozzle movement in Z direction is 100mm, and substrate heating plate top is ceramic. Perfect for manufacturers, exporters, and suppliers looking for precision and efficiency in their operations.
